The Above is a simplified conveyor used to illustrate basic belt conveyor components. Many variations of elevation, loading, discharge, Idlers and Idler spacing, pulleys, and accessories are possible.
• Adjustable/Transitional Idlers
• Box Style Idlers
• Catenary

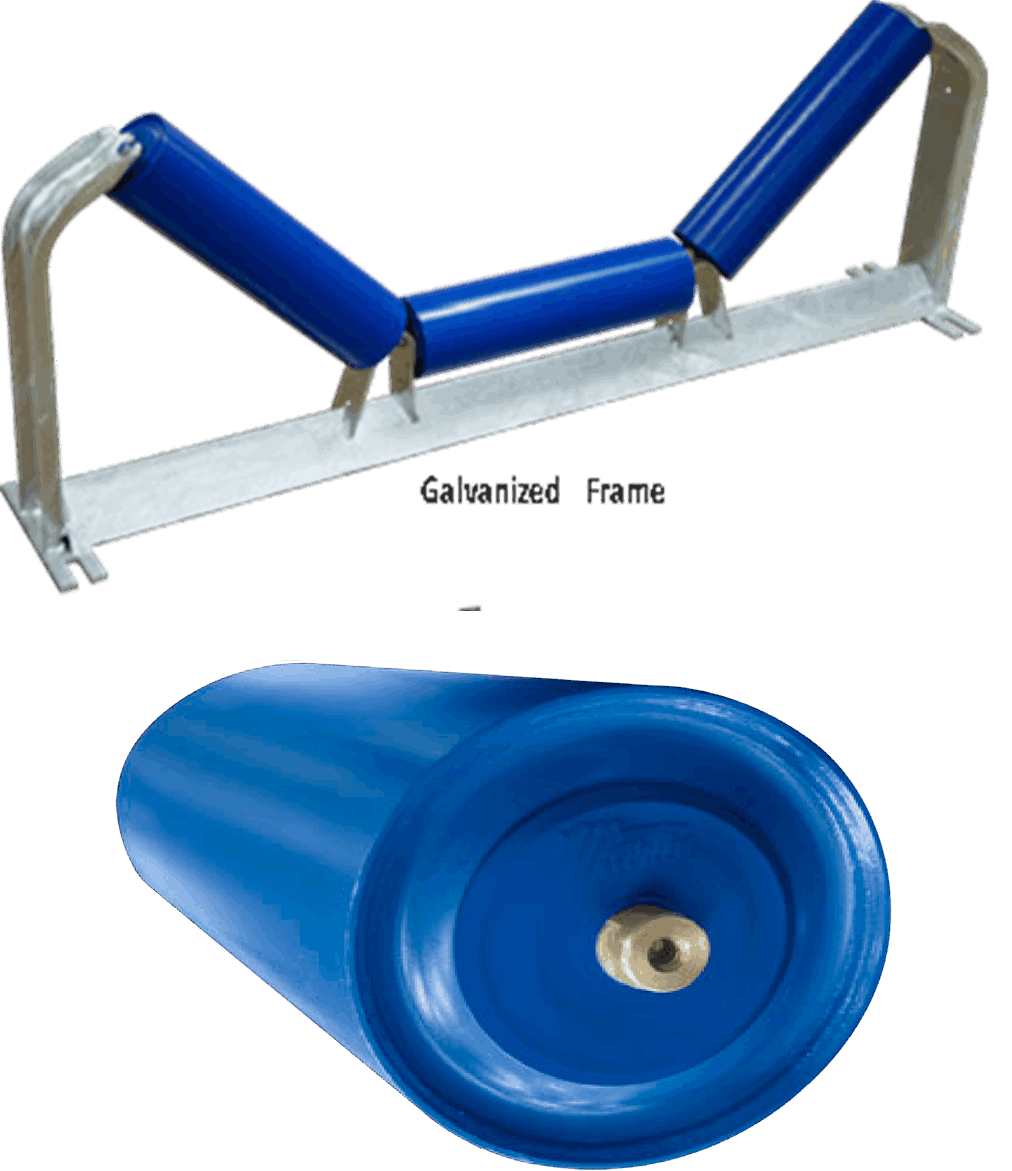

• Galvanized Frames
• Grain Idlers
• Removable Wing Bracket
• Retractable Idlers
• Scale Quality Idlers
• Split Center Roll Idlers
• Wide Base Idlers

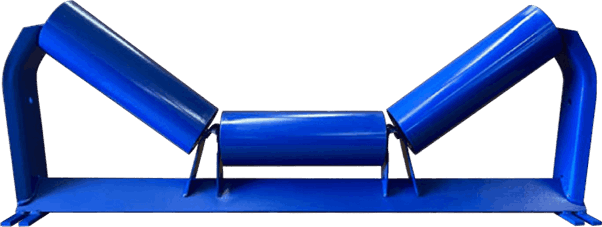

Equal Idlers are designed to support the belt and transport material on the carrying side of the belt. Troughing Idlers typically consist of 3 rolls with wing rolls at 20-, 35- or 45-degree inclinations.

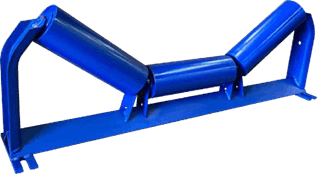

Equal Self-Aligners are used to assist with belts that may be misaligned due to environmental conditions. Equal Self-Aligners pivot to guide the belt back to the center of the troughing Idlers. Equal Self-Aligners can be troughing, steel return or flat carrying.
